Introduction

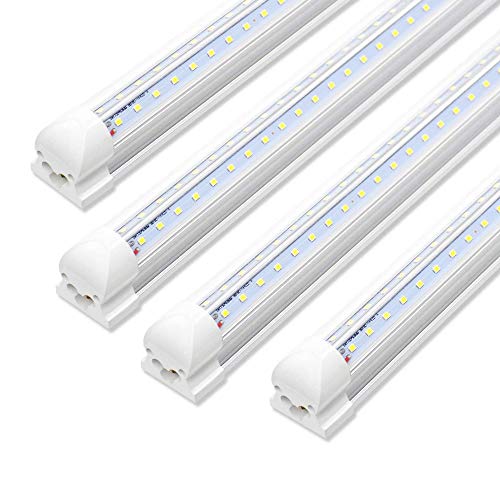

YKUNLED T8 V-Shape Fixture is a great option for lighting up coolers or freezers,garages, basements, work areas, utility rooms etc..
It provides you much brighter, cheaper and healthier lighting than conventional fluorescent light and can easily replace any existing fixtures.
(No buzzing ballasts, no flickering, no mercury or hazardous materials, no UV or IR Radiation)

Specifications:

Power:28W
Length:4ft
Material:Aluminum Alloy+PC
Color Temperature:6000K
Lumens:100 Lm/W
Base Type:Integrated (With Bracket)
PC Cover:Clear Cover
Voltage:AC 100-305V
Operation temperature:-68F to 120F
Light Distribution:270 Degree
Life time:>50,000 hrs

4 x LED T8 Fixtures
8 x Mounting Clips
8 x Screws
4 x End Caps
4 x Connectors
4 x Connectors Cords
4x Power Cords
Easy Installation:

1. Remove Old Fixture (If needed)
2. Install Mounting Clips to Doors
3. Snap LED Tube Light into Mounting
4. For multiple lights installation, Connect other end of the Tube light output to second light input and so on, You can connect any number of Tube lights with one power source
5. Connect to Power Source

How many lights can be linked together in a run?

8FT: no more than 6 lights
6FT: no more than 6 lights
5FT: no more than 5 lights
4FT: no more than 8 lights

The results are the latest test after 6 months, pls follow the instuctions above, or it will burn out /melt after long time use due to the high commulative wattage !

Product Features

• SCIENTIFIC DESIGN – Double Row LEDs Chip,V-shape 270 Degree angle design, which shed more light on your products which makes products brighter and better, for the coolers or freezers illumination.
• LINKABLE – This 4ft LED Tube Single Light Fixture can be connected up one by one with seamless connectors or connector wire.(Please connect no more than 4 pieces at one time ) This will give very bright light replace traditional fluorescent tube light. And it will save 57% on your electricity bill.
• EASY INSTALLATION – Easily replace the traditional fluorescent tube lamp fixture, just plug-and-play. Package including metal clips, small connector and pigtail power cable. You can install the led tube lights on the wall or ceiling.
• T8 LED Tube Lights with bracket(Integrated) – Cool white 6000 Kevin with clear cover ( which emits more light than frosted cover) and bright light high output.These lights can be used Indoor or outdoor (with no direct exposure to water), can work in -68F to 120F temperature conditions.
• QUALITY ASSURANCE – 3-year unlimited warranty, easy and fast replacement is offered if any quality issue
