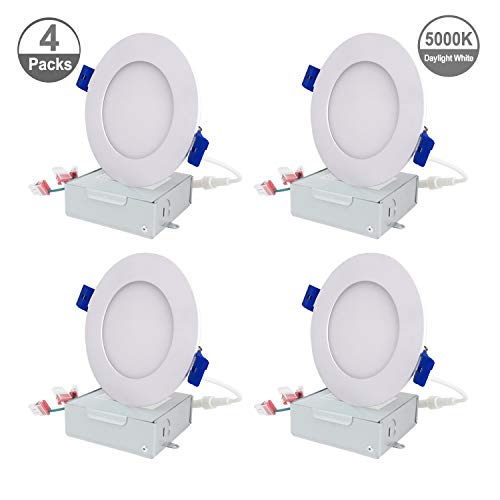

JULLISON LED Recessed Low Profile Slim Panel Light with Junction Box, Air Tight, 4 inch, 9W, 550 Lumens, 5000K Daylight White, CRI80+, Dimmable, cETLus – Listed, Energy Star Certified – 4 Packs
IMPORTANT:
Read all instructions before installing fixtures. Retain for future reference.
SAFETY:
For your safety, this fixture must be wired in accordance to local electrical codes and ordinances. All work should be done by a qualified electrician.
WARNING:
Make certain power is OFF from the electrical panel before starting installation or attempting any maintenance. Indoor installation only.
TOOLS REQUIRED:
1.Saw
2.Measuring Tape
3.Electrical Wiring (use type and gauge suitable for application to connect the fixtures)
PRE-INSTALLATION:
1.Turn power OFF from the electrical panel before starting installation.
2.Locate a suitable position to plate the fixture and open in accordance to the cut-hole dimensions (refer to Hole Cut Table for appropriate size).
3. Run electrical wire from the switch (power supply) through the mounting hole-use NMD90 Romex or BX cable.
FIXTURE INSTALLATION:
1. Connect the fixture to the hardwire box by inserting and twisting the male/female connectors.
2. Push spring loaded clips on the fixture upwards and insert fixture base in to mounting hole. Release the clips and fixture will be pulled flush to the ceiling.
3. Once assembly is complete, turn on power to confirm fixture is working properly.
Hole Cut Size
4-1/4”. Please follow the cut out template with the product.
Product Features
- ● LOW PROFILE: Ultra thin or slim 4 inch recessed down light with isolated driver inside junction box, edge-lite, <1 inch thickness only; Over 80% saving on electricity bills as of 50 watts halogen replacement using 9 watts only.
- ● HOUSING FREE: No pot housing or traditional can/trim as the canless solution is required even for insulated ceilings and dry walls as it is IC rated and air tight certified as per ASTM E283-04; huge cost saving on using the fixture with light, trim and junction box in a unit.
- ● EASY INSTALLATION: Great for new construction, retrofit and remodel applications, install into the 4-1/4″ cut out with ease; 3 fast connectors inside the remote junction box help on easy connection for power and ground.
- ● GREAT DIMMING: Smooth dimming for most of the regular triac/ELV wall dimmers from 10% – 100%, please refer to the product approved dimmer list for selecting a right one.
- ● QUALITY ASSURANCE: Solid die casting heat sink maintains the excellent heat dissipation performance; Passing strict safety and energy standard, ETL and Energy Star certified; 50,000 hours of L70 life; suitable for damp location.
Loading...
Great lights, LED drivers could use improvements, seller is very responsive, would buy again These lights are pretty slick. They are very low profile, and easy to install. They are also very bright and put out quality light. I gave it four stars instead of 5 mainly due to the build on the LED driver. To meet the national electrical code, wire needs to be secured as it enters the fixture/driver. The driver has a standard 1/2″ knockout that fits a NM cable connector. Luckily I had plenty of these on hand, so no big deal. However, the need for a cable clamp isn’t indicated anywhere,…
I installed 28 of the 3000K 4″ lights in my basement drop ceiling. Looks good, dims well. I bought 7 of the 4-packs of the 3000K 4″ 550 lumen fixtures based on some lighting calculations I did for my basement finishing project, consisting of about 800 square feet of finished space. I prefer the look of 4″ fixtures to 6″ fixtures and opted for a greater number of lights for more even light distribution. When I first wired one of these lights in to see it in action, I was certain I had bought way too many lights. But I decided to wire them all up with the layout that I had mapped out…
Installed 12 LED 4″ lights using approved Lutron Dimmer MACL-153MH …
