Lithonia Lighting WF3 LED 30K MB M6 8W Ultra Thin 3″ Dimmable LED Recessed Ceiling Light, 3000K, Black

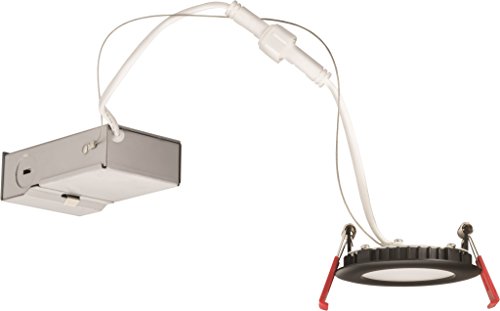

The Lithonia Lighting Wafer-Thin LED recessed downlight with remote driver box combines high quality light output and efficiency while eliminating the pot light housing for competitive affordability. This innovative wafer slim Type IC design allows easy installation for new construction or remodel from below the ceiling without the requirement of a pot light housing.

Technical Specifications:

Power: 8W
Input Voltage: 120V (Connects directly to power supply via provided UL recognized driver)
Luminous Flux: 550LM
Emitting Color: 3000K(Bright White)
Dimmable: Yes
Light Source: LED
CRI: 80
Surface Size: 3.4 inches
Back Hole Size: 3 inches
Dimension: 3.4 x 3.4 x 1.1 inches
Light direction: Downlight
Average life: 36,000 hours
Warranty: 5 years – Limited
Electrical: Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside steel remote box with four 7/8″ knockouts with slots for pry-out
Meets Highest Industry Standards: CSA certified in the USA and Canada, Energy Star Rated, IC Rated, Wet Listed and Air Tight
More electrical information and complete list of compatible dimmers are located on spec sheet

How many LED lights do I need for the room?

Wafer 3 inch: One unit is needed for about every 1.25sq feet in an 8 ft ceiling room
4 units for a room ranging from 5sq ft – 7 sq ft
6 units for a room ranging from 8sq ft – 10 sq ft
9 units for a room ranging from 10sq ft – 12 sq ft

Which light colors work for me?

3000K: Used in family homes, hotels, coffee shops and other warm and sweet environments.
4000K: Used in homes with a need of a soft white lighting atmosphere.
5000K: Used in offices, working areas, shopping malls and other commercial areas that needs super bright lighting

Application Areas:

Ideal for new constructions, remodels or retrofit installations.
Closets, attics, hallways, bathrooms, kitchens, basements, soffits, entry ways, porches, garages
Stairwells, corridors, nursing/retirement homes, condos, elevators, apartments, and any other small areas

Installation Guide:

1. Double check and measure the ceiling hole.
2. Open the cover of the remote driver box. Push and remove one of the knockouts on the side plate.
3. Connect the remote driver box to the light fixture and tighten nut connector.
4. Place remote driver box through the cut-out hole.
5. Pull the spring clip on the fixture up and through the ceiling hole. Place module in the hole
6. Turn the power on

Installation guide for kit included in the package.

Product Features

  • EASY AND SAFE INSTALLATION – innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling. Only need 2″ clearance for install
  • HIGHLY RATED FOR MULTIPLE LOCATIONS – CSA, IC, Airtight and Wet Location listed make LED Wafer ideal for indoor and outdoor residential, hospitality, commercial and multifamily applications and safe to contact insulation
  • EXTREMELY BRIGHT DIMMABLE LEDs use 8 watts to provide 550 lumens with an 80 CRI, almost 70 lumens per watt. Dims down to 10% and compatible with select Lutron, Levitron, Synergy and Sensor Switch dimmers
  • ULTRA THIN LED design only requires a 3 inch ceiling hole and 2 inches of ceiling space are needed to fit LED wafer recessed light and UL recognized driver
  • SAVES MONEY AND TIME changing bulbs – Energy Star rating provides high light output with minimal power usage and will last 36,000 hours or +16 years when on every day for 6 hours/day
