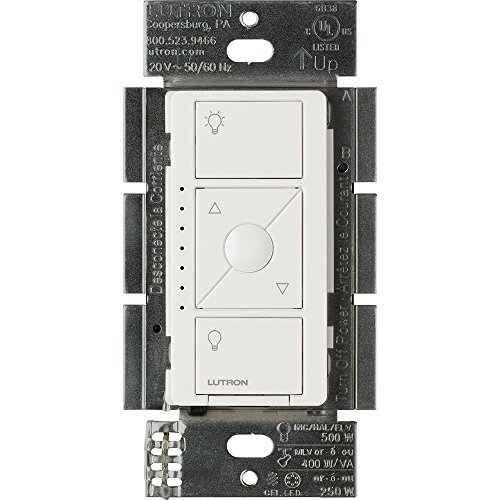

Lutron PD-5NE-WH ELV Caseta Wireless Electronic Low Voltage In-Wall Dimmer, 1 pack, White
Bring technology and style to your home with the Lutron Caseta elv+ dimmer. Caseta wireless from Lutron allows you to control your lights from anywhere within your home with the Pico remote control (sold separately) or from anywhere with your mobile device via the free app and Caseta smart bridge (also sold separately). the Caseta elv+ dimmer allows you to recall your favorite light level with the new preset button for added convenience, and is designed to control many loads types: 500-Watt of incandescent, halogen, or electronic low voltage, 400-watt of magnetic low voltage, and 250-Watt of dimmable LED or dimmable CFL (neutral wire connection and 10W minimum load required for all load types). out of the box the dimmer is set to control elv, incandescent, halogen and many compatible leds, however is phase selective the dimmer output can be changed for MLV and certain LED bulbs with simple button press programming. The Caseta elv+ dimmer is a great solution for LED fixtures with integrated, built-in drivers, elv track lights, and problem leds that may prefer an elv dimmer. To use in a multi-location application, replace the existing switch with a Pico remote control and wall plate Adapter (both sold separately). please note, wall plate for dimmer is also sold separately.
Product Features
- Works with Amazon Alexa to support dimming through voice control (Smart Bridge required, Alexa device and Smart Bridge sold separately)
- Replaces an existing switch and installs in 3 steps in as little as 15 minutes; neutral wire required
- Can control up to 29 bulbs per circuit (based on 8.5W LED bulb, 60W incandescent equivalent)
- Tested and recommended for use with over 1,000 bulbs (for recommended LEDs, please see “Technical Specification”)
- Works with up to 250W of dimmable LED/CFL, 500W incandescent/halogen or ELV, or 400W of MLV; 10W minimum load required
- For added convenience, use with Pico remote (sold separately: PJ2-3BRL-GXX-L01) to turn lights on/off or raise/lower to adjust brightness
- For multi-location applications, use with Caseta Wall Mount Kit (PJ2-WALL-WH-L01, sold separately)
- Works with your voice assistant or smart phone via the FREE Lutron app for Ios AND Android (Smart Bridge required)
- Connects with more leading smart home brands (including Amazon Alexa, Apple HomeKit, the Google Assistant, Nest, Serena shades, and Sonos) than any other leading smart lighting control brand (Smart Bridge requried)
Loading...
Tips to work around this switch’s firmware bugs that were confirmed to me by Lutron on 3/31/2017 These are outstanding dimmers, but only for homes with a neutral wire (usually a cluster of white wires in the very back of the junction box, found in newer homes built since the 80s). There is also firmware bug in these switches that I confirmed with Lutron tech support on 3/31/2017 that prevents you from setting accurate trim levels. The work-around to the firmware bug is explained here.The first thing you need to know about this switch is that your LEDs may still buzz with it…
The PD-5NE-xx is the BEST CASETA DIMMER period. Excels at everything the cheaper PD-6WCL-xx doesnt The ELV PD-5NE-xx dimmer is pricy, requires a white ânuetralâ wire, but itâs also the switch to get. It resolves all of the weaknesses of the cheaper Caseta dimmer (PD-6WCL-xx). I donât know why the CNET type reviewers donât hit on the weaknesses of the PD-6WCL-xx, the Amazon verified customers sure notice. In this review I reference the less expensive switch, but the truth is both Caseta switches are pricey.Lutron Caseta ELV PD-5NE-xx dimmer pros and cons:PROS:-…
Creates the appearance of a hardwired dimmer/switch in an electrical box or on the wall I purchased 8 of these and have replaced a majority of the 3-way and 4-way switches in my house with them, and used a Caseta dimmer in a central location. I have also used them to add new switches where I needed them by wall-mounting. These (and the Caseta dimmer in general) are super-easy to install. When mounted in a box, you need to screw them down to the box pretty tight to avoid a “spongy” feel but if you do that the feel and appearance is indistinguishable from a hardwired…
