Information
Color:Warm White 2700K
Input wattage: 8 Watts
Input Voltage: AC 120V
Luminous Flux: 750lm
LED Type:COB
Beam Angle:38 degree
Dimmable:yes
Material: Aluminum + PMMA Lens
Warranty: Five years
Certification: BV, Energy Star, ETL
Description:
This High Power D3-C2- COB LED, offers a market leading 750Lm output and is perfect for work areas where a brighter light is needed.
The powerful light output and precise 38 degree beam angle make the recessed lights can be integrated into furniture or ceiling lights to create a warm and friendly atmosphere.
35000 hours long service time make it perfect for ceiling, kitchen, entryways, bathroom, living areas and bedroom external soffits (not in direct rain or water).
When finish installation you can adjust the light to right irradiation angle, 38 degree in left or right.
Cautions
(1)Rated for indoor use only; do not use where exposed to weather.
(2)Do not use other drivers.
(3)Do not connect multiple fixtures to one driver.
Installation Steps:
1. Turn power OFF from the electrical panel before starting installation.Double check and measure the ceiling hole.
2. Open the cover of the remote driver box. Push and remove one of the knockouts on the side plate.
3. Connect the remote driver box to the light fixture and tighten nut connector.
4. Place remote driver box through the cut-out hole.
5.Push spring loaded clips on the fixture upwards and insert fixture base in to mounting hole. Release the clips and fixture will be pulled flush to the ceiling.
6. Once assembly is complete, turn on power to confirm fixture is working properly.

Product Features

• IC rated integrated dimmable fixture dimming capabilities from 10-100% smoothly.High quality cold forged aluminum housing with COB light source,which have great advantage of thermal resistance,large cooling area,better lighting effect and high light efficacy.
• Energy Star Qualified and ETL-Listed 8W recessed led ceiling light to replace traditional 70W halogen light can save more than 85% energy cost.

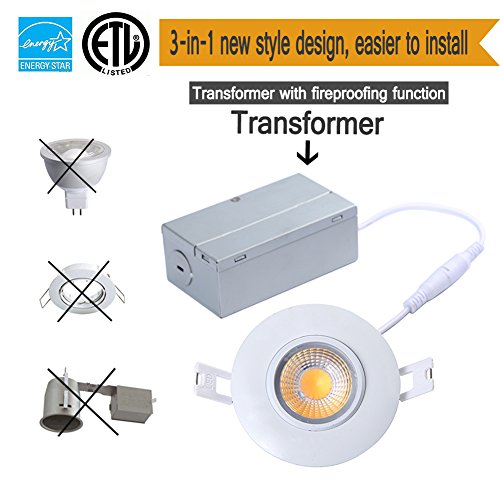

• 3 in 1 design to be easy install and nothing needed.Recessed 3-inch round LED lighting with Integral driver in connection box fit anywhere which no need other recessed fixture.
• 360 degree rotation and 45 degree tilt with 38 degree beam angle make it adjustable to meet a variety of specific lighting needs.Widely used for cupboard,art galleries, hotels, museums, shopping malls, restaurants, clothing stores and so on.
• Lifespan is over 35000 hrs with 5 years warranty. Save effort and maintenance costs on changing bulbs frequently.?Eco-Friendly, Free of harmful lead or mercury.
