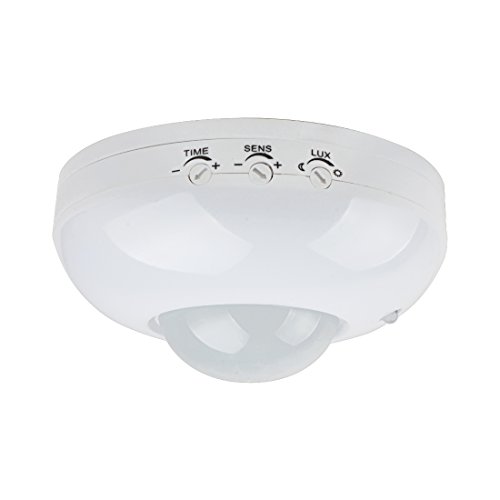

uxcell Motion Sensor Switch 110V-240V Adjustable Ceiling Infrared Body Motion Sensor Light Switch Security Automatic LED PIR Motion Sensor Detector
Description:
1.The ceiling sensor switch needs to be mounted about 6-14 feet off the ground to have a better detection.
2. Our motion sensor was adjusted to work at darkness, please adjust the Ambient Light of sensor before test
3.With infrared motion sensor, it can automatically detect the existence of people which is good for energy saving.
4.Intelligent time delay and easy installation, convenient to use.
5.Suitable for corridor, toilet, garage, hallway and anywhere else needed.
Features:
1.Adjustable detection distance,time delay ,ambient light
2.Performance stability
3.Day/night adjustable
Specification:
1.Working Voltage: AC110-240V
2.Working Frequency: 50-60Hz
3.Detection Range:120 degree(side-view)/360 degree(top-view)
4.Detection Distance: Max.6m
5.Detection Motion Speed:0.6~1.5m/s
6.Ambient Light: less than 10LUX
7.Working Temperature:-20~+40C
8.Working Humidity:less than 93%RH
9.Average Load: Max.800W(~110V AC)/Max.1200W(~220V AC)
10.Installation height : 2m-4.5m
Time-delay: Min. 5sec; Max. 7min.
10.Package Included:1 x Motion Sensor Switch
(Comes with fixing screws and instructions)
Product Features
- The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical function.
- Installation:The ceiling sensor switch needs to be mounted about 6-14 feet off the ground. And the motion sensor was adjusted to work at darkness.
- With infrared motion sensor, it can automatically detect the existence of people which is good for energy saving. Adjustable detection distance,time delay ,ambient light. Automatically move detection, Performance stability, Day/night adjustable.
- Suitable for corridor, toilet, garage, hallway and anywhere else needed. Intelligent time delay and easy installation, convenient to use.
- Average Load: Max.800W(~110V AC)/Max.1200W(~220V AC)10. The installation height : 2m-4.5m
Loading...
Mixed review because the instructions are totally confusing Hard to write this review because I haven’t hooked it up yet. Why? Because the directions are written in “Chinese ebonics.” I’m going to reach out to my electrician to see if he can make any sense of how to hook a red, blue and brown wire to a red, black and white wire. Also no wiring schematic enclosed in the package only these poorly written directions. Hook up is in a laundry room in a basement with a 7 foot ceiling connected to two 4 foot, two bulb fluorescent light fixtures…
Installation instructions are in Chinese-English so you will not be getting a clear idea of how install the sensor properly. Also the instructions have no diagram or steps for the wiring scenarios. I found good feedback with the product on Amazon that listed the proper wiring setup and there is also a wiring diagram on the plastic exterior that also helped. Why they couldn’t include that with the instructions is why I’m giving it three stars. The motion sensor works as it supposed to but having…
